Weber Trailer Hitch Kit EH – KU.02.000.12

The EH-hitch is a special version of the popular E-hitch from Weber Technik. The hitch “EH” is intended for use on wheels with the Hebie rear stand type 661 with steel head (). The EH-hitch can also be attached to it without the stand only if the mounting plate (hole spacing 40 mm) is available on the chain stay. For this, use the supplied nuts.

Technical data:

• Maximum coupling load: 80kg
• compatible to all frame designs
• for all wheel sizes
• Weber bayonet catch

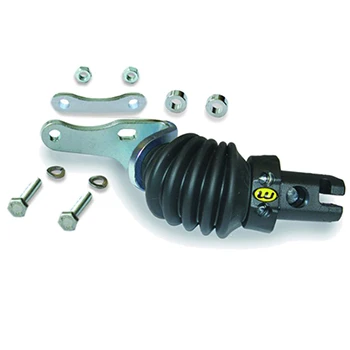

Included in delivery: EH-hitch incl. hinged piece
2 x M6 30mm
2 x M6 40mm
2 retaining washers
2 self-locking nuts
2 x distance bushings
1 x distance plate
assembly instruction
Material: plastic: fiber-glass reinforced polyamide, metal parts: stainless steel, galvanized steel
Weight supplement: manufacturer information
