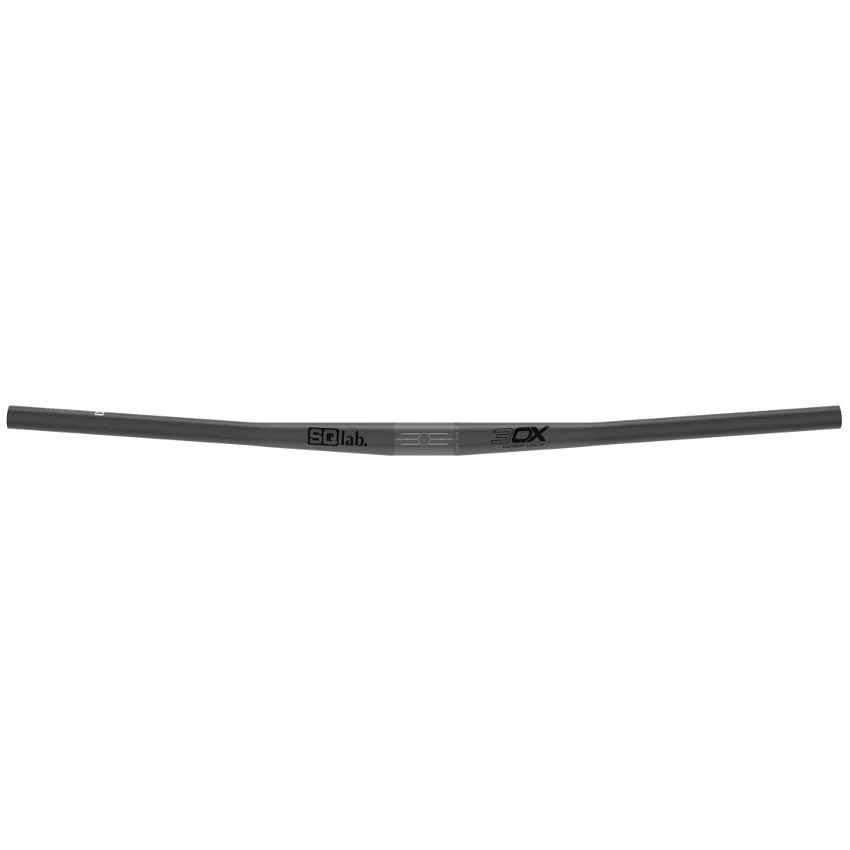

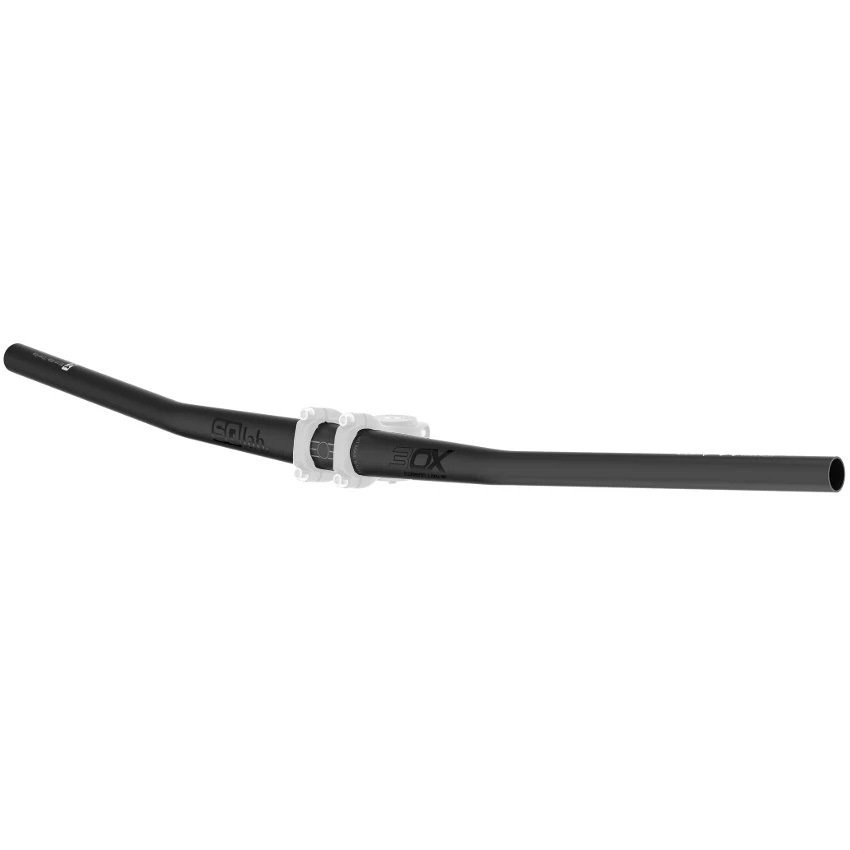

SQlab 3OX MTB Carbon Handlebar – 12° – 31.8 – 15mm Low Rise



SQlab 3OX carbon bar with 15 mm rise, 780 mm width and 12° backsweep

The is a 780mm wide SQLAb carbon handlebar with 12° backsweep, 15mm rise and a clamp diameter of 31.8mm.

The 12° backsweep with its short reach provides a natural transition from the lower arm to the hand when in a more upright riding position thus protecting the wrist from the extreme strain occurring in riding downhill. The 4° upsweep brings the elbows into a perfect position for a dynamic riding style

The perfect combination of form, wall thickness and diameter with the corresponding anatomically optimized bend for various riding dynamics, currently make the new SQlab 30X handlebar series the most stable as well as the lightest bar in its field.

Features of SQlab 3OX MTB Carbon Handlebar:

• Perfect combination of shape, wall thickness and diameter
• Lightweight and stable at the same time
• Optimized bend for driving dynamics and anatomy
• Backsweep: 12°
• Upsweep: 4°
• Clamp diameter: 31.8mm
• Rise: 15mm
• Width: 780mm
• Material: Carbon

The 3OX handlebar passed the “Zedler End of Life” test with flying colors
