Shimano 105 FD-R7100 Front Derailleur – 2×12-speed

With the mechanical 12-speed components of the 105 series, Shimano offers a shifting system for the most diverse types of road cyclists. The FD-R7100 front derailleur is characterized not only by a light, harmonious and at the same time natural shifting behavior, but also impresses with its simple and precise adjustability. In addition, the Down Swing front derailleur features the optimized cage design of the Shimano Toggle Link construction, which ensures seamless compatibility with road bikes with disc brakes with the help of various options for the cable control and thanks to an integrated adjustment option for cable tension.

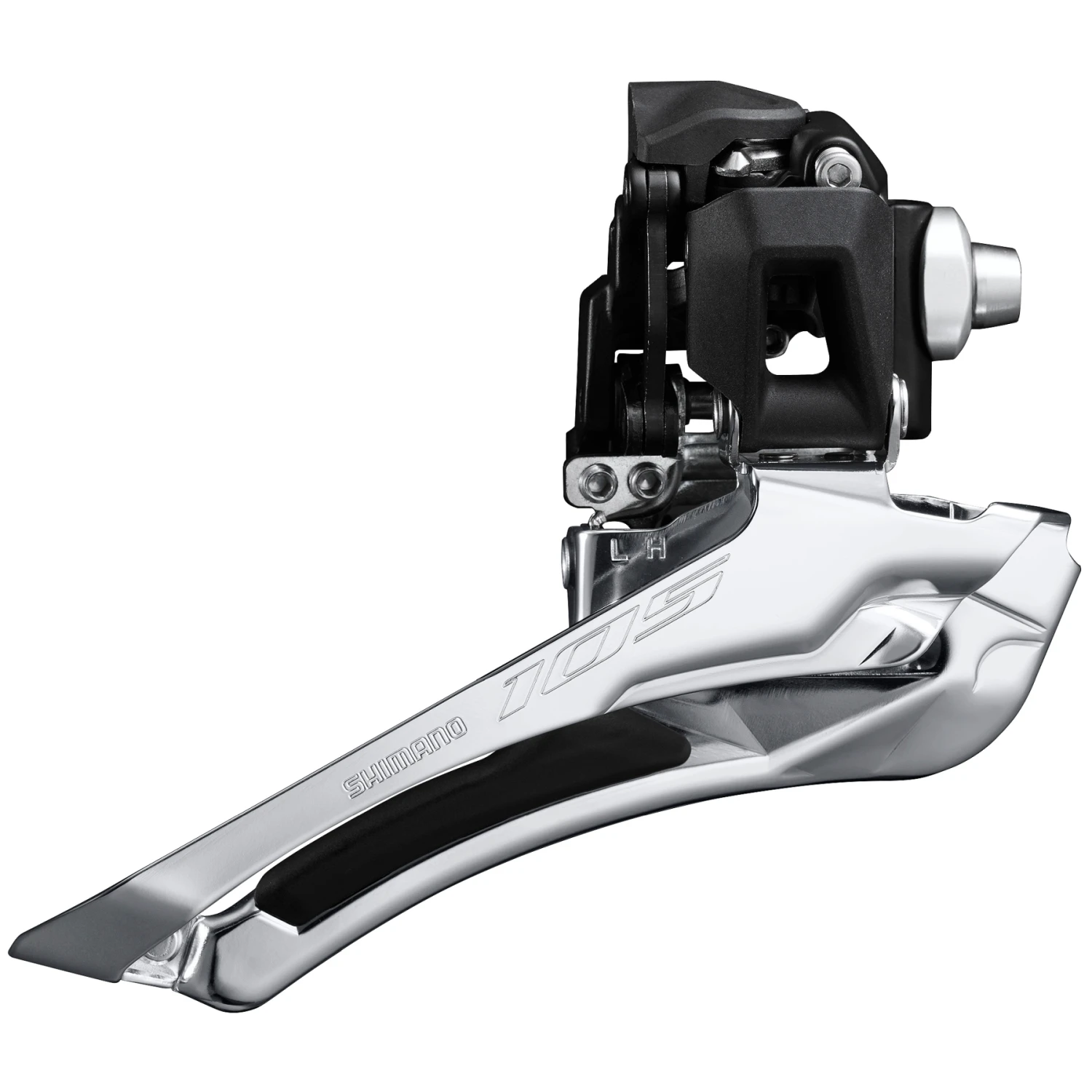

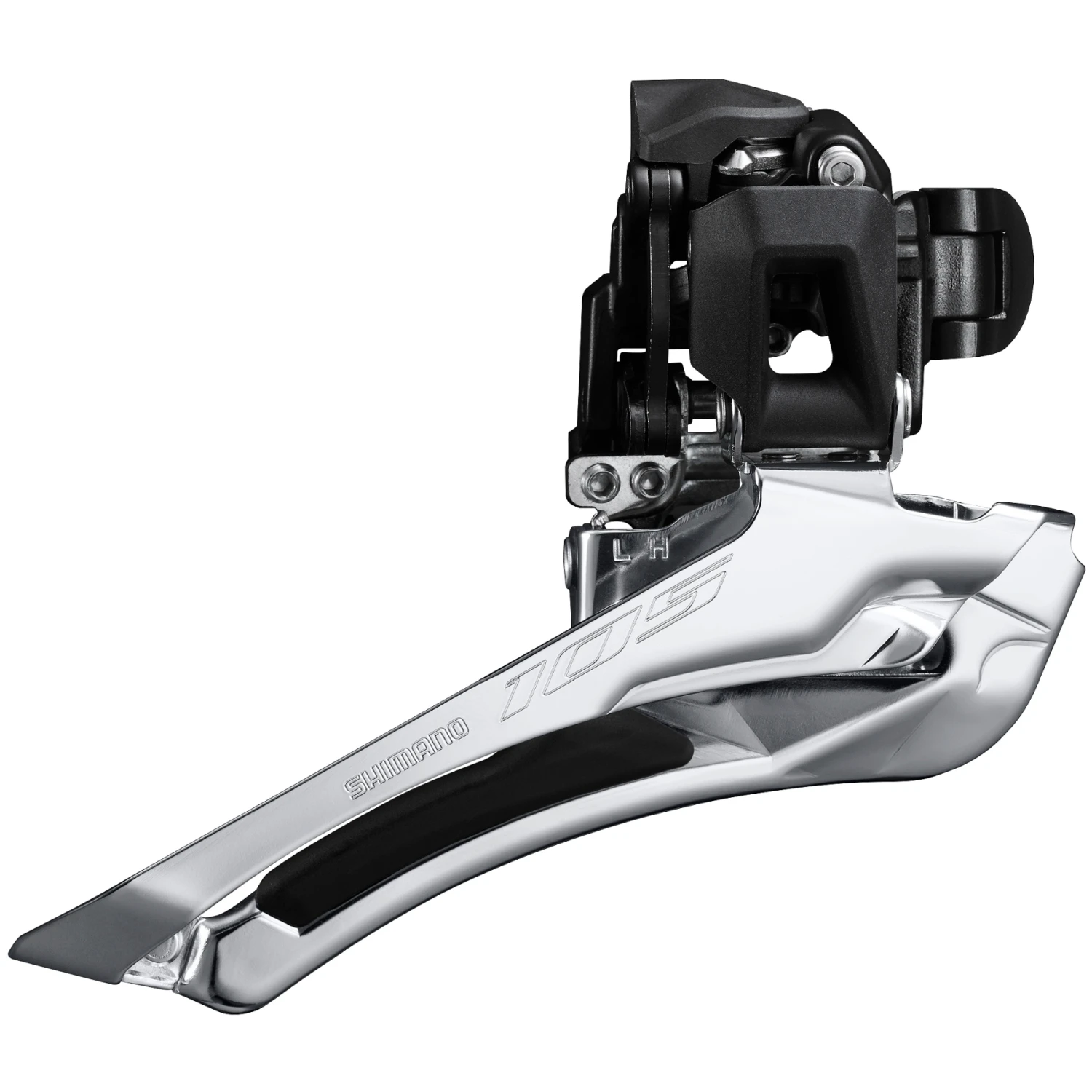

Available is the 2×12-speed front derailleur in 2 models with different clamp diameters (FD-R7100-B: 31.8 mm incl. adapter for 28.6 mm / 34.9 mm) and as a braze-on version (FD-R7100-F).

---

base, bracket: aluminum (plated)
chain guide: steel (chrome plated)
outer link: glass fiber reinforced plastic (GFRP)
inner link: steel (plated)

• STI lever: ST-R7120, ST-RX820, ST-RX610
• crank: FC-R9200, FC-R9200-P, FC-R8100, FC-R8100-P, FC-R7100, FC-RS520, FC-RX820-2, FC-RX610-2
• chain: CN-M9100, CN-M8100, CN-M7100, CN-M6100
• accessories: SM-AD91 adapter (for FD-R7100-F)

(manufacturer recommendations, list not exhaustive)

approx. 96 / 111 g (FD-R7100-F / FD-R7100-B)
