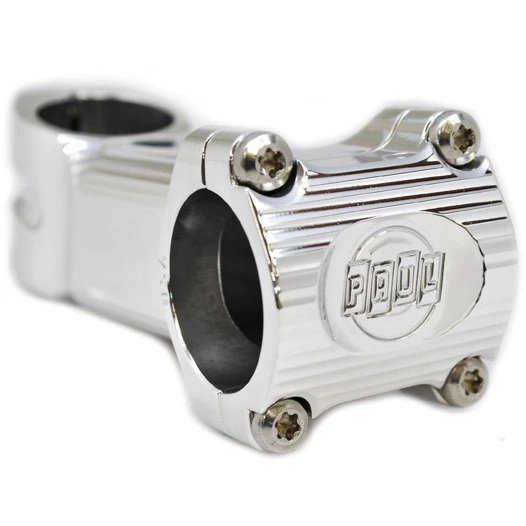

Paul Component Boxcar Stem – Polished
Original price was: $154.28.$99.99Current price is: $99.99.
- Quality that lasts, prices that don't.
- Prompt service, every time.
- Protecting Your Payment Information
- Safe Transactions, Always
The Boxcar Stem is the perfect combination of stiffness, strength and reasonable weight. Available in +/- 0 in 50, 70 and 90 mm. Also +/- 15 in 70 and 90 mm. All screws are high strength stainless steel with the popular T25 head.
This stem was designed from the ground up to be stiff, strong and pretty darn light too. Paul Component went through several design iterations and believe they’ve reached the best combination of these three principles. Extensive real world and machine testing and proven this to be one strong stem.
With respect to torsion, the rounded box shape is some 25% stiffer than the competition. As for strength, they ran it through 1,000,000 cycles of above normal use stress without a single problem.
The stems come in a zero rise and a +/- 15 degree rise. Lengths are 50, 70 and 90 mm. All screws are the same pan head T25 Torx type screws in stainless steel. Why Torx? Because they work so well, and are the same wrench size as the ubiquitous rotor screws all makers use. Also SRAM has made a switch to T25 screw heads in almost all their products, which is a good sign. As usual, by letting the function and material properties dictate the shape of the product, Paul have come up with another one of their often complimented and purposeful designs. Yes, it looks a little different, but with us there is always one good reason for this: to make it work as awesome as possible.
Weights:
35mm +/-0: 118 g
50mm +/-0: 137 g
70mm +/-0: 153 g
90mm +/-0: 155 g
70mm +/-15: 169 g
90mm +/-15: 172 g
100mm +/-7: 181g
110mm +/-7: 203 gÂ
| Handlebar | Clamping, Angle, Length 31.8 mm, 0°, 35 mm, Clamping, Angle, Length 31.8 mm, 0°, 50 mm, Clamping, Angle, Length 31.8 mm, 0°, 70 mm, Clamping, Angle, Length 31.8 mm, 0°, 90 mm, Clamping, Angle, Length 31.8 mm, 15°, 70 mm, Clamping, Angle, Length 31.8 mm, 15°, 90 mm, Clamping, Angle, Length 31.8 mm, 7°, 100 mm, Clamping, Angle, Length 31.8 mm, 7°, 110 mm, Clamping, Angle, Length 35 mm, 0°, 35 mm, Clamping, Angle, Length 35 mm, 0°, 50 mm |
|---|---|
| Product Name | Paul Component Boxcar Stem – polished |
| Manufacturer | Paul Component Engineering |
| Item Code | PAU320638 |
| activity | Cycling |
| material | Aluminium |
| usage bikesport | Road Bike, MTB |
| Steerer tube Ø | 1 1/8" straight ahead, 1 1/8"-1 1/4" tapered, 1 1/8"-1 1/2" tapered, 1 1/8"-1 3/8" tapered |
| Handlebar Clamp Ø | 31,7 / 31,8mm |
| stem clamping height | 36mm |
| Model year | 2023 |
| Color | Metallic |
| weight | 118g |
| Weight Source | Manufacturer |
| Weighed Version | 35 |
| Stem version | Ahead, Ahead – Flip Flop |
