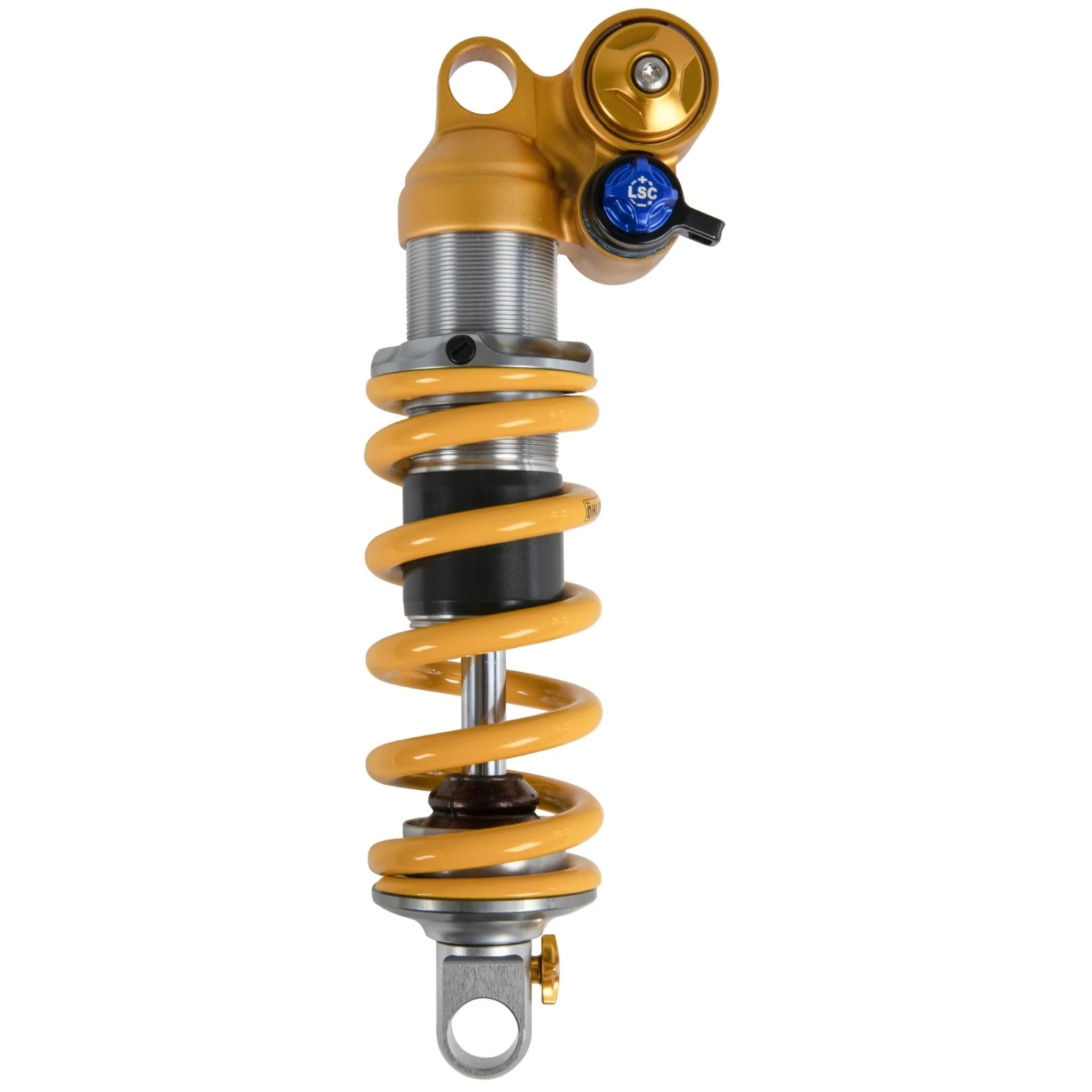

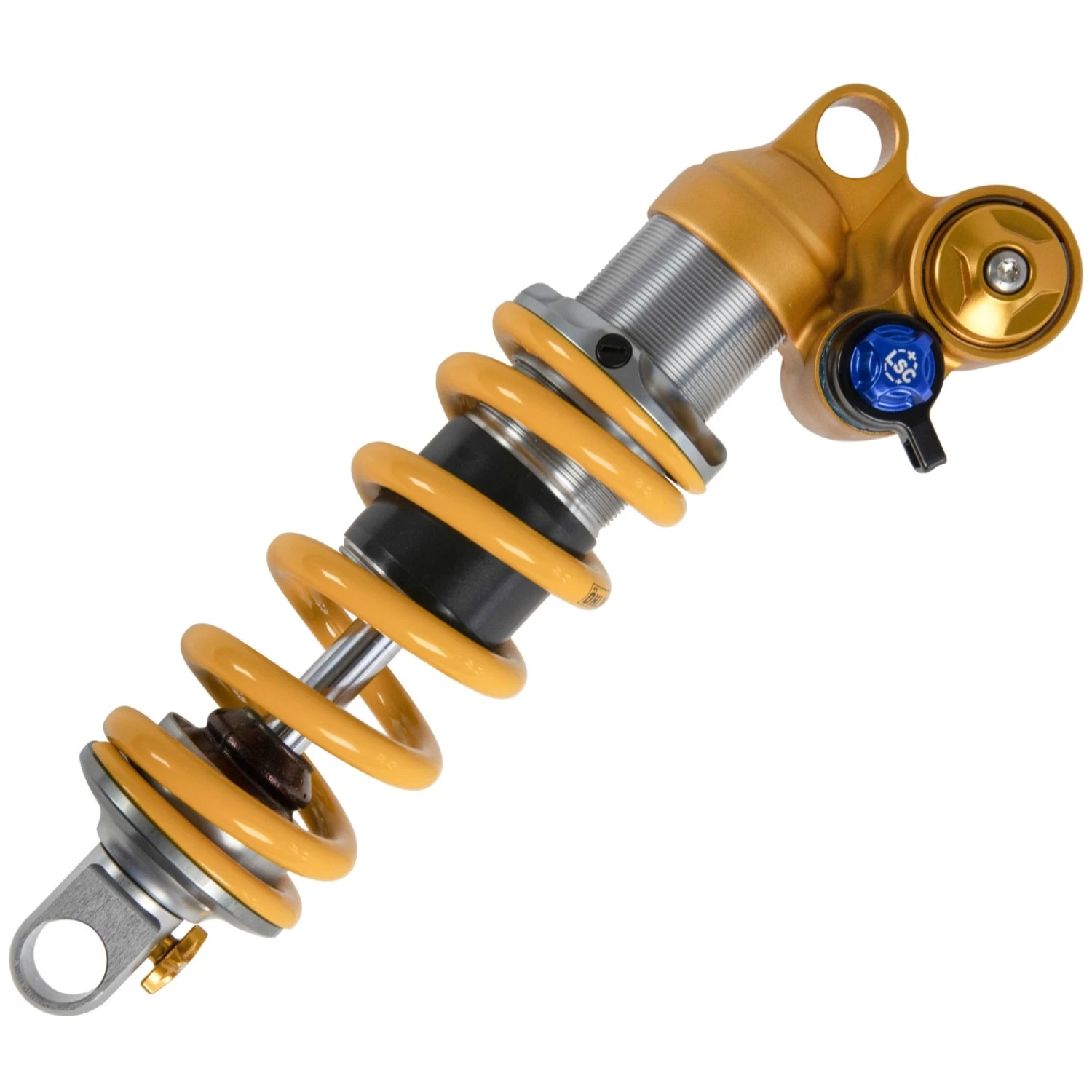

ÖHLINS TTX22m.2 Rear Shock – Coil | Metric – 230x65mm

The Öhlins TTX22m.2 is the current version of the proven Öhlins TTX22 rear shock, designed to withstand the most demanding Downhill trails. The TTX22m.2 now offers a wider range of adjustment of the compression damping for more high-speed settings and a tighter climb mode in the trail variant. In addition, the adjustment range of the low-speed compression damping has been expanded to 22-clicks to customize the setup.

The Öhlins TTX22M.2 offers improved buttom-out performance thanks to a redesigned bumper that also sits in a shell. This improves mid-travel control and reduces the risk of hard bottoming. Another feature is the easy adjustment of the stroke in 2.5mm increments using washers (included in delivery). These can now be easily added or removed from under the bumper shell without the use of special tools.

Additionally, the rebound adjuster has been redesigned for easier coil spring changes. The proven twin-tube design (TTX) is retained, allowing separate adjustment for rebound damping in low-speed and compression damping in low- and high-speed.

Specifications of the Öhlins TTX22m.2 rear shock

• Metric version
• specially designed for Gravity and Enduro bikes
• Twin Tube Technology (TTX)
• nitrogen pressure bladder accumulator system
• easy change of stroke through 2.5mm spacer

Adjustment options

• 3-way adjustable high-speed compression
• 22-way adjustable low-speed compression
• 7-way adjustable rebound

Variants

• 210x55mm (52.5 / 50 / 47.5mm)
• 230x65mm (62.5 / 60 / 57.5mm)
• 250x75mm (72.5 / 70 / 67.5mm)

The installation length 250mm is supplied with the gold “DH compression Valve”, all other installation lengths have the blue “Trail Valve”.



1x rear shock | 3x 2.5mm stroke spacers incl. bolts | 2x 18482-01 Igus bushing kit | user manual
