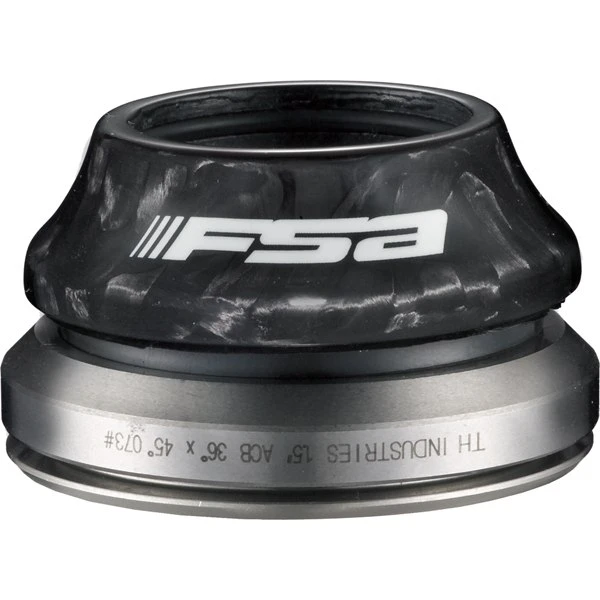

FSA Orbit C-40/48-CF-ACB UD-Carbon Headset Tapered Drop In IS42/28.6 | IS52/40

No. 42/48CF/ACB

High-quality, fully integrated aluminium headset for tapered 1.5 – 1 1/8 inch steerer. With carbon fiber top cover and high-quality cone made of aluminium. Upper bearing 1 1/8 inch – 45°/45° ACB (Campagnolo compatible). Lower bearing 1.5 inch – 36°/45° ACB . The FSA No. 42/48CF/ACB carbon hedset has the following mounting sizes – upper bearing inner/outer: 42/48 mm, lower bearing inner/outer 52/56 mm.

Ahead-headset building classes:

Ahead-headsets are divided into the “classical” building class, the semi integrated “Press Fit” and the full integrated “Drop In” headsets. The “classical” version has a bearing which is located outside the steerer tube. “Press Fit” and “Drop In” headset bearings are located inside the steerer tube which results in a lower stack height. In contrast to “Press Fit” headsets “Drop In” headsets don’t have to be pressed in. The bearing rests directly on the angled (36° or 45°) surface of the steerer tube. The most common “Drop In” versions are called “Drop In Campy” for Campagnolo Hiddensets and “Cane Creek”.
For more detailed information please contact our service team.

The FSA configurator makes it easier to choose the right headset.
Material: top cover / ahead cap: UD carbon
bearings: stainess steel
cone: aluminium
