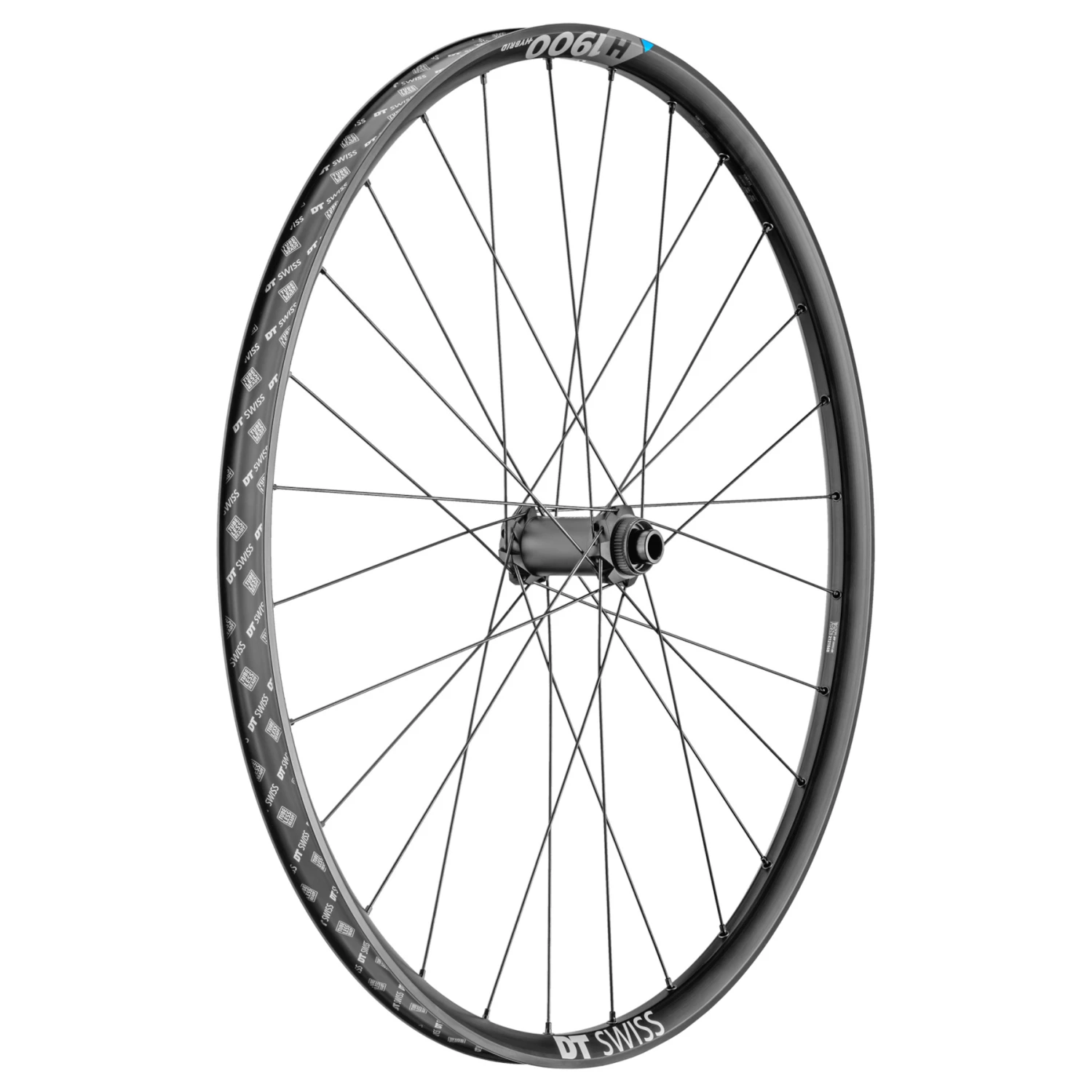

Dt-swiss DT Swiss H 1900 SPLINE Front Wheel – 27.5″ | 30mm | Clincher | Centerlock – 15x110mm Boost



For extended eMTB tours!

When motor assistance meets human muscle power, the number of terrains that a bike can conquer also grows. The H 1900 SPLINE wheels are tailored precisely to the stronger requirements of E-Bikes.

Instead of changing the proven rim profiles, additional material was added to the DT Swiss Hybrid models exactly where it is needed most. Those parts were reinforced where the greatest loads occur. so that the aluminum rims can not only withstand higher speeds, but also carry a system weight of up to 150 kg. To offer every rider the best possible grip as well as optimum traction, the H 1900 wheels are also available with two different inner widths.

The combination of the proven 370 hub with the reinforced Hybrid 1 spokes, which increase the lateral and torsional stiffness, also benefits the resistance of the wheels. To meet the higher loads of electric mountain bikes, the rear wheel was also equipped with a cassette mount made of specially hardened steel and the Ratchet LN freewheel system for a more diversified power distribution.



Technical details of the DT Swiss H1900 SPLINE 30 front wheel

• rim: DT Swiss Hybrid MTB (aluminum)
• construction: clincher, Tubeless compatible (TC)
• design: Hooked / Crotchet, Sleeve Joint
• wheel size: 27.5 inch (650B)
• outer width: 35 mm / inner width: 30 mm / profile height: 20 mm

• hub: DT Swiss H 1900 SPLINE 370
• brake disc mount: Centerlock
• installation dimension: 15 x 110 mm Boost (thru axle)

• spokes: DT Swiss Hybrid 1 (Straightpull; double butted / 2.34 – 2.0 – 2.34 mm)
• spoke count: 28
• spoke pattern: triple crossed (both sides)
• nipples: DT Swiss Squorx (ProLock / ProHead; aluminum; 2.0 x 15 mm)

• weight: approx. 965 g (manufacturer’s specification)
• max. system weight: 150 kg



The wheels of the 1900 SPLINE (Straight Pull Line) series represent the entry into the MTB range of DT Swiss and are intended to equip bikers with components on which they can rely 100 %. Thanks to manual work, not only a precise manufacturing quality is achieved, but also the well-known, brand-typical reliability is ensured.

Tubeless tires offer some decisive advantages over the conventional combination of tire and tube. The tire can be ridden with less pressure without risking “snakebites” and thus offers more grip. The lower pressure also provides a more comfortable ride. The absence of the tube means that there is no friction between the tube and tire and therefore rolling resistance is lower when riding off-road and over obstacles.

The DT Pro Lock spoke nipples prevent an independent loosening of the spoke-nipple connection. A patented two-component adhesive is injected into the nipple thread, which allows the construction of extremely durable wheels. Once the nipples are screwed in, the adhesive is activated and then fully cures. Repeated re-centering is possible without any problems, although the adhesive strength decreases slightly with each re-centering.



front wheel incl. Tubeless rim tape and Tubeless valve
