Dt-swiss DT Swiss ARC 1400 DICUT Db 62 Rear Wheel – 28″ | Carbon | Centerlock – 12x142mm – Shimano HG-EV / SRAM XDR

Reborn Faster!

The DT Swiss ARC 1400 DICUT 62 were developed to achieve one thing – speed! The wheels have an AERO+ rim profile and come with DICUT Aero hubs. The disc brake version with 62mm deep rims sets new standards in aerodynamics and handling. In close cooperation with the aero experts of SWISS SIDE, a lower wind sensitivity in crosswind conditions and an improvement of the overall aerodynamics of the wheels could be achieved. In moderate crosswinds, the rider benefits from the propulsion provided by the sail effect as well as from a stable aerodynamic position with full control of the bike. High-quality DT Swiss Aero spokes and the lightweight 240 DICUT Aero hubs for direct drive complete this wheel set.





More details of the DT Swiss ARC 1400 DICUT

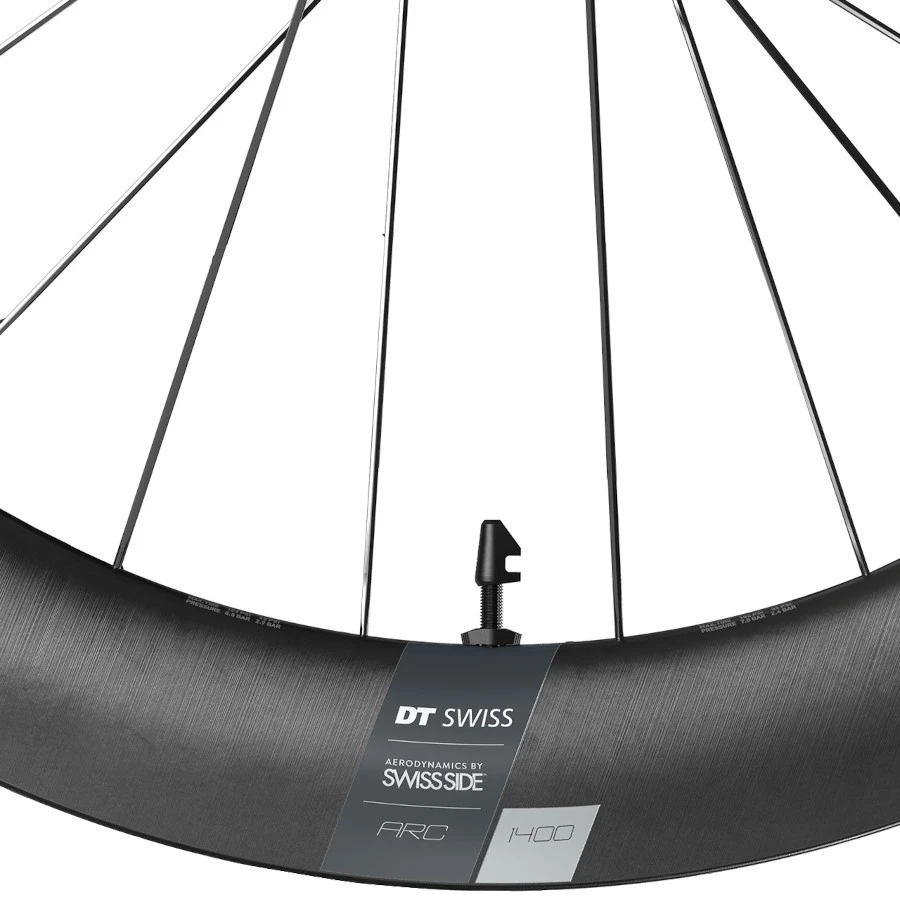

By combining new and proven aero components, cyclists benefit from maximum control in many riding situations and at high speeds. Thanks to the AERO+ rim, optimal aerodynamics are ensured by reduced drag, as well as controllable handling due to reduced steering torque. In addition, the shape of the rim can create a forward pushing sailing effect in crosswinds.

The profiles of the rims have been specially designed for tubeless use. They guarantee a perfect fit and make the installation of the tire as easy as possible. Nevertheless, it is always possible to use a conventional combination of tire and tube.

The wheels are built with DT aero comp T-Head spokes – the ideal compromise between aerodynamics and strength. In a two-stage manufacturing process, the spokes are first compacted (cold forging process) and then hardened again in the subsequent flat forging process (bladed).

Compared to the former 240 aero hub, the silhouette of the hub body has been reduced in size and thus aerodynamically improved. Furthermore, it convinces with simple, tool-free maintenance and excellent durability.

DT Swiss hubs are known for the No-Tool concept. The concept allows the tool-free conversion to all common axle and freewheel body standards. All DT Swiss Ratchet System hubs can be converted.

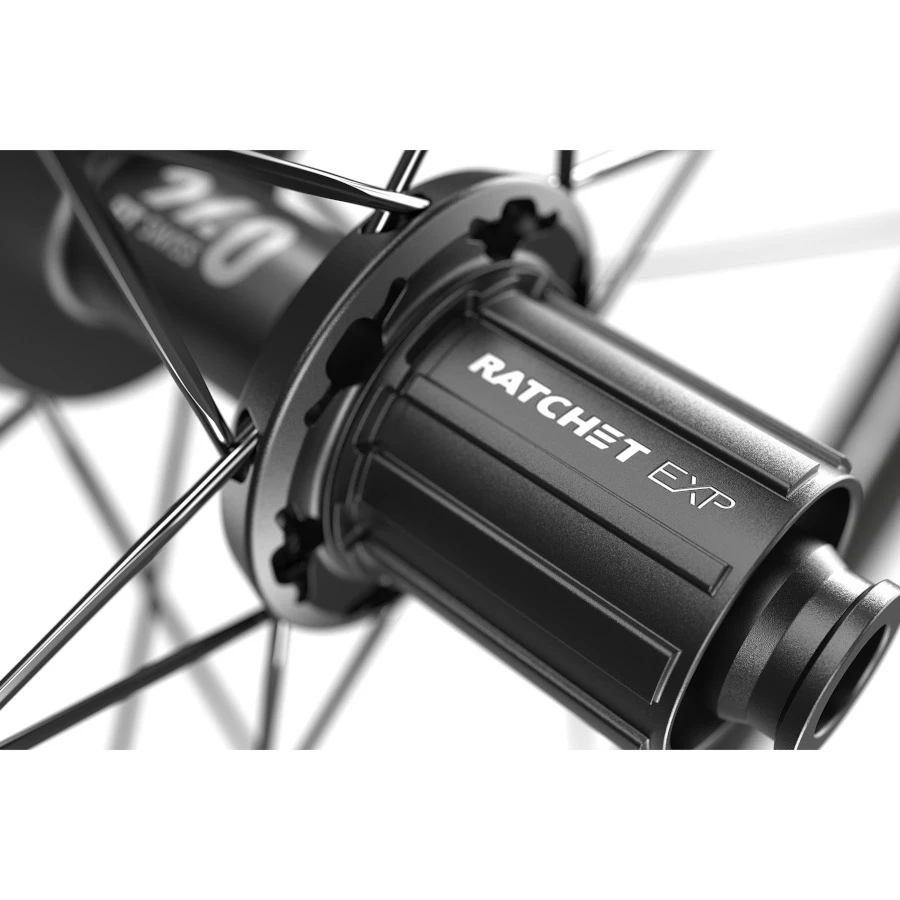

Ratchet EXP Technology

The Ratchet System EXP hubs are unique in that all the teeth of the two discs mesh simultaneously every time. In the case of ratchet hubs, the meshing area is quite small. In the case of the Ratchet System, however, the entire face surfaces engage with each other, which makes for a much smaller point load. The result is the legendary reliability of Ratchet System hubs.

Compared to the original Ratchet system, the EXP system reduces the overall number of components, utilizing a single spring, resulting in a decrease in weight of the freehub system. Allowing the use of a single cylindrical spring resulting in a faster full engagement and therefore an increase in reliability. The integration of the drive side bearing into the threaded ring increases the bearing distance, resulting in a 15% improvement in hub stiffness.



wheel, tubeless tape, tubeless valve, valve guard, Shimano HG-EV & SRAM XDR freehub
