BLUECHAIN Two Bike Store Away – Aluminium/black

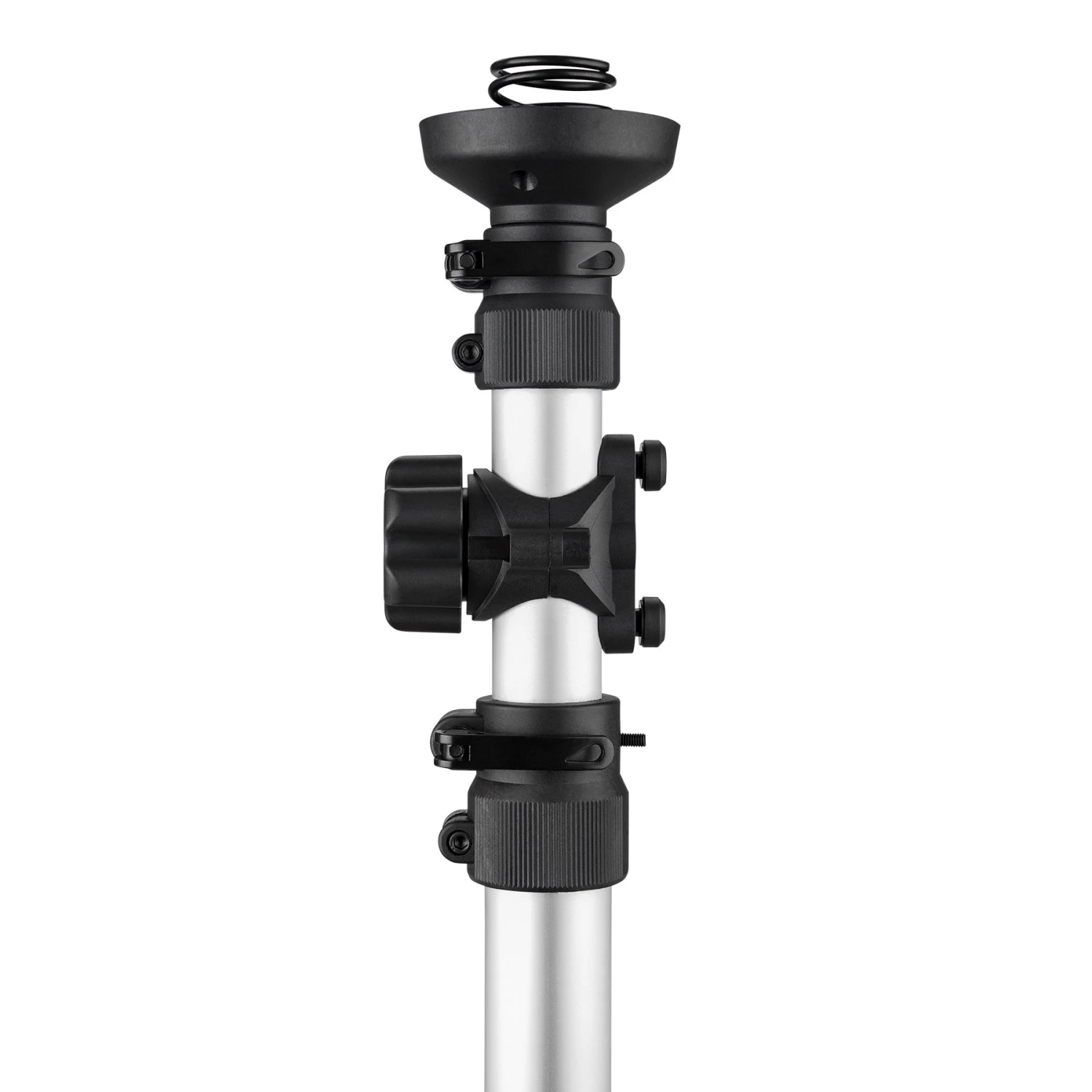

The BLUECHAIN storage stand is the perfect solution to hang your bike vertically in a space-saving way. The stand is simply and securely clamped between the ceiling and floor without any fasteners or tools. It is height-adjustable for different floor-to-ceiling distances from 160 to 340 cm and offers space for two bikes up to a total weight of 60 kg. The 30° angle-adjustable bracket can also accommodate bicycles with sloping top tubes. The bracket is also variable in height. So you can easily combine different types of bikes. In addition, the wheel is protected from scratches by foam-covered hooks, which also provides a secure hold.

Features of the BLUECHAIN telescopic bike holder for 2 bikes

• load capacity per holder up to 30 kg

• height adjustable: from 160 to 340 cm

• 30° angle adjustable bracket for frames with sloping top tube

• mounting without tools or fixing material

• rubberized clamping caps

• material: alloyed aluminum

Note

• Ensure sufficient distance to the wall to avoid soiling of the wall or damage to the bike.

• Only clamp the storage rack between ceilings and floors that have suitable surfaces for this purpose.

• The maximum load capacity of the storage rack is 30 kg per bracket.

• Check the secure fit of the storage stand after assembly and before initial use.

• If you have any concerns regarding the use with particularly light frames or carbon frames, please be sure to contact the manufacturer beforehand and ask for approval.

Assembly instructions

1. Carefully press the top of the telescopic rod of the storage stand against the ceiling. Make sure that the ceiling is not unstable and suitable for the project.

2. Release the lock in the middle of the telescopic rod. Now bring the telescopic rod vertically into the correct position between the ceiling and the floor, so that a secure hold is guaranteed.

3. Now close the lock again after bracing between floor and ceiling and tighten the plastic screw clockwise at the base of the telescopic rod. This gives the bike mount greater strength.

4. Now attach the bracket and the hooks to the storage rack and adjust them at the appropriate distance for the respective bicycle types to each other.

Scope of delivery:

• Storage rack made of aluminum

• 2 brackets with hooks
